Microservice Grid and Micro Frontends

Adam naming the animals, Wellcome Library, London. Source: Wikimedia Commons.

This post is not here to bring you anything new as it is for me to run a victory lap. If there is anything I blogged about with any consistency, it was about microservices. There are many articles in this blog addressing various problems you may face when attempting a microservice system of a non-trivial scale. One area I was particularly keen on was decomposition of the front end in a way similar to what we did in the back.

You would think that it goes without saying, but a lot of microservice noise was focused on the backend. I understand that: breaking the big server into a number of smaller ones behind a routing proxy is easier to understand. REST API is REST API is REST API. A number of endpoints per microservice neatly collate into a complete system with use of session-less API services.

But what’s good for the goose ought to be good for the gender. Slapping a massive, unruly front end server in front of a nice microservice API system does not help us much, other than to highlight the irony of the half-hearted approach. That’s why I focused a lot of this blog on composing the UI microservices as well. From your favorite article on microservice authentication, to UI composition, to isomorphic microservices using Node.js and React.

Far from being armchair generals, we put our money where our mouth is, applying these ideas in production, learning more in each successive generation. The last name for this approach I used was microservice grid:

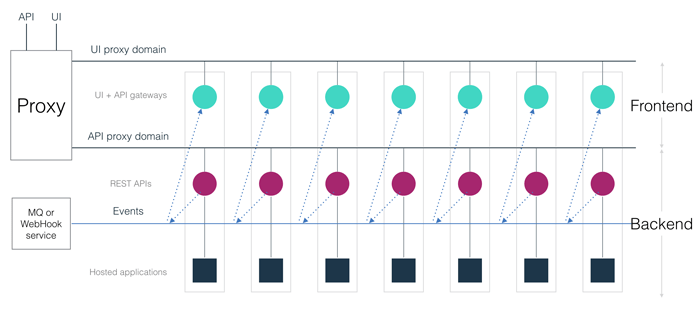

microservice-gridThe picture above represents the essence of our current approach. It is uniform in that horizontally it represents tiers (front end, back end, optional hosted legacy apps in containers). Three buses provide glue – UI domain for bringing all paths under the same URL, API domain for collating all API endpoints, and an event bus to glue the microservices using a message broker of some kind.

Vertically, each column of the grid represents a feature. What I like about this approach is that unlike with big monolith apps, adding features does not make everything bigger and slower. Adding a new feature vertical does not affect the performance of the existing verticals.

So that’s what you call it

One of my favorite hobbies now is going to Technology Radar published by ThoughtWorks and looking for how they are naming a technique we are already using in production. For example, the pattern of providing a single API gateway for your client side code is now called Back End for Front end. But what gave me no end of pleassure was that now the whole approach of this blog that I spent so much time writing about has an official name: micro frontends.

We’ve seen significant benefit from introducing microservice architectures, which have allowed teams to scale delivery of independently deployed and maintained services. However, teams have often struggled to avoid the creation of front-end monoliths—large and sprawling browser applications that are as difficult to maintain and evolve as the monolithic server-side applications we’ve abandoned. We’re seeing an approach emerge that our teams call micro frontends. In this approach, a web application is broken up by its pages and features, with each feature being owned end-to-end by a single team. Multiple techniques exist to bring the application features—some old and some new—together as a cohesive user experience, but the goal remains to allow each feature to be developed, tested and deployed independently from others. The BFF – backend for frontends approach works well here, with each team developing a BFF to support its set of application features.

Technology Radar, Nov 2016, ThoughtWorks

Like with Adam in the engraving above, things exist before they are named, but Nomen est Omen – naming our approach in a way that offers a nice symmetry with micro services gives it a renewed meaning and is a success in my book.

Therefore, go forth and build your microservice grids, your micro frontends, your Backends for Frontends, you princes of Maine, you kings of New England.

© Dejan Glozic, 2017
