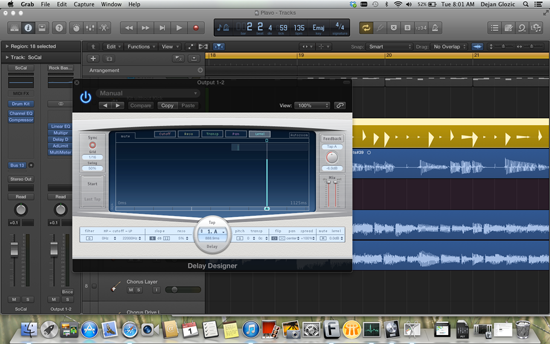

In my introductory post The Turtleneck and the Hoodie I kind of lied a bit that I stopped doing everything I did in my youth. In fact, I am playing music, recording and producing more than I did in a while. I realized I can do things in the comfort of my home that I could have only dreamed in my youth. My gateway drug was Apple GarageBand, but I recently graduated to the real deal – Logic Pro X. As I was happily mixing a song in its beautifully redesigned user interface, I needed some elaborate delay so I reached for the Delay Designer plug-in. What popped up required some time to get used to:
This plug-in (and a few more in Logic Pro) clearly marches to a different drummer. My hunch is that it is a carry-over from the previous version, probably sub-contracted and the authors of the plug-in didn’t get to updating it to the latest L&F. Nevertheless, they shipped it this way because it very powerful and it does a great primary task, albeit in its own quirky way.
This experience reminded my of a dilemma we are faced today in any distributed system composed of a number of moving parts (let’s call them ‘apps’). A number of apps running in a cloud platform can serve Web pages, and you may want to hook them up together in a distributed ‘site of sites’. Clearly the loose nature of this system is great from the point of view of flexibility. You can individually evolve each app as long as the contract that glues them together is upheld. One app can be stable and move slowly, while you can rev the other one like mad. This whole architecture works great for non-visual services. The problem is when you try to pull any kind of coherent end user experience out of this unruly bunch.
A ‘web site’ is an illusion, inasmuch ‘movies’ are ‘moving’ – they are really a collection of still images switched at 24fps or faster. Web browsers are always showing one page at a time. If a user clicks on an external link, the browser will unceremoniously dump all of page’s belongings on the curb and load a new one. If it wasn’t for the user session and content caching, browsers would be like Alzheimer patients, having a first impression of the same page over and over. What binds pages together are common areas that these pages share with their keen, making them a part of the whole.
In order to ensure this illusion, web pages have always shared common areas that navigationally bind them to other pages. For the illusion to be complete, these common areas need to be identical from page to page (modulo selection highlights). Browsers have become so good at detecting shared content on pages they are switching in and out, that you can only spot a flash or flicker if the page is slow or there is another kind of anomaly. Normally the common areas are included using the View part of the MVC framework – including page fragments is 101 of the view templates. Most of the time it appears as if only the unique part of the page is actually changing.
Now, imagine what happens when you attempt to build a distributed system of apps where some of the apps are providing pages and others are supplying common areas. When all the apps are version 1.0, all is well – everything fits together and it is impossible to tell your pages are really put together like words on ransom notes. After a while, the nature of independently moving parts take over. We have two situations to contend with:

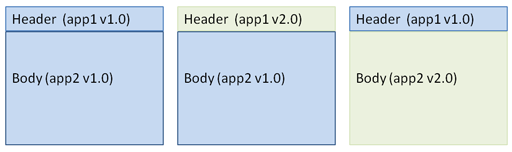

- An app that supplies common areas is upgraded to v2.0 while the other ones stay at v1.0
- An app that provides some of the pages is upgraded to v2.0 while common areas stay at 1.0
These are just two sides of the same coin – in both cases, you have a potential for end-results that turn into what I call ‘a Gryphon UX’ – a user experience where it is obvious different parts of the page have diverged.
Of course, this is not a new situation. Operating system UIs go through these changes all the time with more or less controversy (hello, Windows 8 and iOS7). When that happens, all the clients using their services get the free face lift, willy-nilly. However, since native apps (either desktop or mobile) normally use native widgets, there are times when even an unassisted upgrade turns out without a glitch (your app just looks more current), and in real world cases, you only need to do some minor tweaking to make it fit the new L&F.
On the Web however, the Web site design runs much deeper, affecting everything on each page. A full-scale site redesign is a sweeping undertaking that is seldom attempted without full coordination of components. Evolving only parts of a page is plainly obvious and results in it not only being put together like a ransom note but actually looking like one.
There is a way out of this conundrum (sort of). In a situation where a common area can change on you any time, app developers can sacrifice inter-page consistency for intra-page consistency. There is no discussion that common set of links is what makes a site, but these links can be shared as data, not finished page fragments. If apps agree on the navigational data interchange format, they can render the common areas themselves and ensure gryphons do not visit them. This is like reducing your embassy status to a consulate – clearly a downturn in relationships.

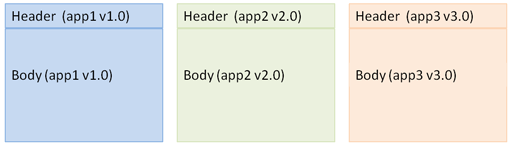

Let’s apply this to a scenario above. With version evolution, individual pages will maintain their consistency, but as users navigate between them, common areas will change – the illusion will be broken and it will be very obvious (and jarring) that each page is on its own. In effect, what was before a federation of pages is more like a confederation, a looser union bound by common navigation but not the common user experience (a ‘page ring’ of sorts).
It appears that this is not as much a way out of the problem as ‘pick your poison’ situation. I already warned you that the Gryphon dilemma is more of a philosophical problem than a technical one. I would say that in all likelihood, apps that coordinate and work closely together (possibly written by the same team) will opt to share common areas fully. Apps that are more remote will prefer to maintain their own consistency at the expense of inter-page experience.
I also think it all depends on how active the app authors are. In a world of continuous development, perhaps short periods of Gryphon UX can be tolerated knowing that a new stable state is only a few deploys away. Apps that have not been visited for a while may prefer to not be turned into mythological creatures without their own consent.
And to think that Sheldon Cooper wanted to actually clone a gryphon – he could have just written a distributed Web site with his three friends and let the nature take its course.
